PTI Technologies’ random fiber filter media is the highest performance media on the market today. PTI’s 421® Metal Fiber Media element design extends the life of components and reduces annual maintenance cost, thereby providing a higher level of operational reliability and improved safety.

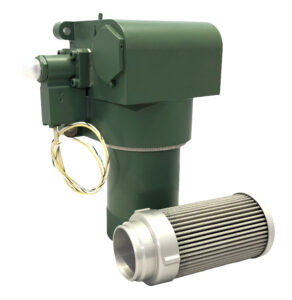

Drawing on our longstanding experience in the design, and production of metal fiber media filter elements, PTI has led development of improved hydraulic system filter elements for the US Army. Early tests have shown a significant improvement in system cleanliness, on stream life and resistance to cyclic flow contaminant migration.

PTI Technologies designs and produces a wide range of hydraulic filter elements used in today’s commercial and military aircraft and ground support systems. Filter elements comprised of depth-type filtration media combine high efficiency particle removal while optimizing contamination capacity. Operating environments include pressures up to 5,000 psid and temperatures ranging from -65°F to 350°F.

PTI provides filtration solutions for engine applications ranging from the PT6 to the PW4000 series engines. Applications include fuel, lubrication and pneumatic systems. Filter elements of the constructed of depth-type filtration media or woven wire mesh are offered in both disposable and cleanable configurations.

In addition to pleated filter elements, PTI provides screen, strainer and metal edge type filter elements for use in last chance, fuel wash flow, scavenge lube oil and other systems requiring protection for downstream components.

This rolling diaphragm indicator detects differential pressures as low as 5 psid +/- 0.5 psid up to 15 psid +/- 1.5 psid while maintaining a size compact enough to be mounted in a SAE-AS33514-8 port. High pressure sensing port is located radially on the OD just below the .750-16 UNJF mounting threads with the low pressure sensing port opposite and along the axis of the signal button. Signal: Visual. Reset: Manual.

Electrical and visual design couples MIL-S-8805 microswitch to the magnetic pop-out button. The mechanical motion of the pop-out button drives the snap acting SPDT microswitch. The switch can be wired for normally open or normally closed circuits. Hermetically sealed, gold contact switches recommended for all high temperature (to 500ºF) or low load applications (6 Volt, 0.010 amp circuit). Many mounting configurations and electrical connectors are available, or can be built to customer specification. Signal: Electrical and Visual. Reset: Manual (Automatic reset also available).

This indicator has a high pressure sensing port located at the bottom of the indicator, opposite and along the axis of the signal button. The low pressure sensing port is located radially. Signal: Visual. Reset: Manual.

Compact design provides a visual pop-out button signaling impending bypass. With the application of additional pressure, the indicator cracks to permit bypass. The standard unit designed for use with a 0-12 GPM flow rate, 50 psid +/- 5 psid actuation, 60 psid +/- 10 psid cracks with a 10 psid minimum between actuation and crack. High pressure sensing port is located at the bottom of the indicator, opposite and along the axis of the signal button. The low pressure sensing port and bypass openings are located. Signal and bypass functions are accomplished in a very small, lightweight package. The overall length of the indicator with bypass is 1.800″ with a 0.743″ OD. Signal: Visual. Reset: Manual.

PTI’s custom-designed Radar Coolant Filter Module provides Liquid Cooling Filtration in support of the radar fluid systems integrated into one compact and efficient manifold providing greater reliability and improved maintainability.

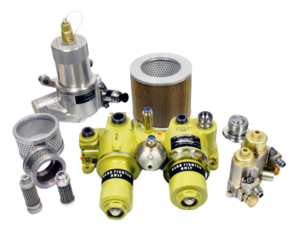

PTI’s filter modules support military aircraft systems to handle vital functions – such as hydraulic actuation, fuel distribution, lubrication systems, environmental control, avionics and electronics all of which depend on fluid cleanliness to perform safely and reliably during mission-critical operations.

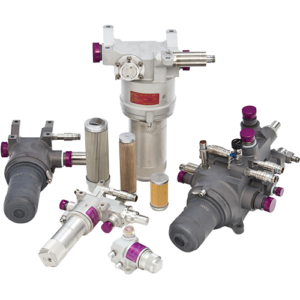

PTI Technologies engineers reliable, high-performance and fully integrated filtration solutions for aircraft fluid systems. PTI’s complex filtration and fluid control manifolds ensure maximum protection and efficiency against contaminants in systems with operating pressures up to 5,000 PSI. Technical innovation enhanced by our customer focus has made PTI a trusted partner in the aerospace market.

PTI’s custom designed filter manifolds integrate independent fluid system into one compact and efficient manifold providing greater reliability and improved maintainability while optimizing weight and mission performance. International customers have selected PTI as their source for filtration and fluid control products.

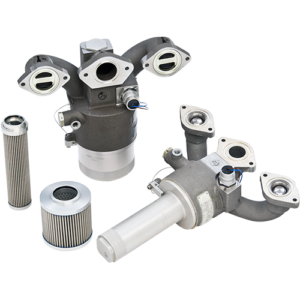

PTI Technologies designs and produces many of the Hydraulic Filtration Applications on Boeing’s family of Aircraft. The Boeing 787 liquid cooling system provides cooling flow to the Primary Electronics Cooling System (PECS), the Integrated Cooling System (ICS) and the Forward Cargo Air Conditioning System (FCAC) – which PTI  provides the filtration package modules for all three systems.

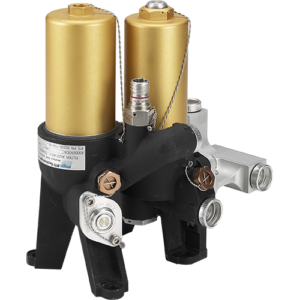

PTI has developed a number of innovative filter designs and aviation firsts. The RR 250 Combined Engine Fuel Assembly filter module is a unique design which incorporates engine lube and fuel filters in the same module. This design provides significant weight savings and a smaller space claim as well as the added benefit of cooling the lube oil via thermal transfer with the relatively cool fuel.

PTI Technologies designs and produces many of the hydraulic filtration components on Boeing’s family of aircraft. Our product content ranges from individual filter elements to complete integrated hydraulic system modules like the Boeing 767 Engine Driven Pump / Air Driven Pump Module.

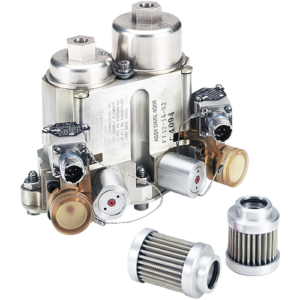

PTI’s multi-component modules combine a number of functions into a compact package. The EJ 200 engine lube oil filter module for the Eurofighter incorporates both pressure and return lube oil filtration as well as bypass valves and electrical / visual indicators.

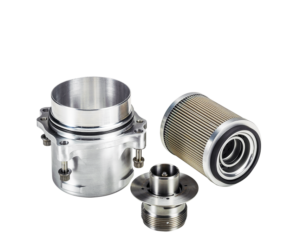

In addition to multi-component modules, PTI also designs and manufacturers filter sub-assemblies for direct integration into engine, gearbox or pump housings. The engine lube filter sub-assembly for the JSF F-135 engine consists of a filter bowl, filter element and a combination valve assembly with by-pass, shut-off and reverse flow functions.

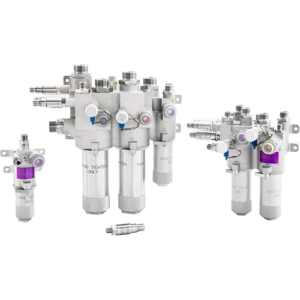

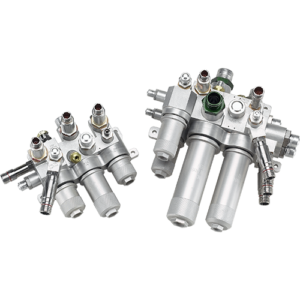

PTI has a extensive pedigree in commercial and military aviation, but we also produce products for business jets and regional aircraft. The hydraulic filter modules for the Falcon 7X are examples of complex multi-component modules and incorporate the following components:

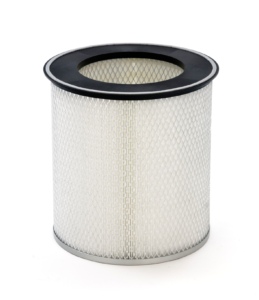

Designed to remove airborne particles including dust, pollen, lint, smoke, spores, hydraulic mist, bacteria, viruses and other contaminants

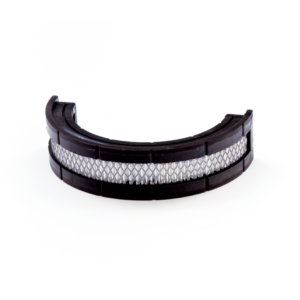

Designed to remove contaminants from the avionics equipment cooling air supply

Designed to remove contaminants from the electronics equipment cooling air supply

Designed to remove contaminants from the avionics equipment cooling air supply

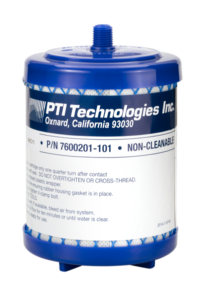

Designed to enhance taste and eliminate odor, and protect against pathogens, parasitic cysts, disease, bacteria and viruses

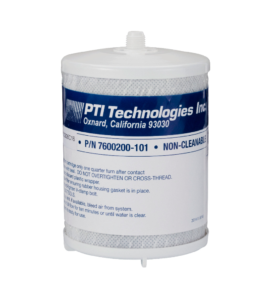

Designed to enhance taste and eliminate odor

Designed to enhance taste and eliminate odor

Designed to enhance taste and eliminate odor.

Technical and ordering information, AN-6236 Style Filter Elements, 75 & 300 psid collapse

Technical and ordering information, AN-6235 Style Filter Elements, 150, 200, 300, 3000 & 4500 psid collapse

421® Soft Sintered Element

PTI Technologies metal filter elements begin with our proprietary 421-brand random fiber depth media. PTI’s 421® media is made from very small fibers, which are annealed and compressed to exacting specifications. The media is available in 316L stainless steel, and also other specialty alloys, such as Hastelloy R.

Because we make 421® ourselves, we don’t have to rely on “off-the-shelf” media to solve our customer’s problems. Instead, we are able to match our customer’s needs to very specific filtration solutions. Many times, we will create a custom media for a given customer application.

421® media offers much higher porosity than woven wire cloths or sintered powder media, and in fact higher even than competitive random fiber media. This results in low pressure drop, high contaminant capacity, and long on-stream life. What’s more, 421® elements are cleanable and reusable, so they’re even friendly to the environment.

Double Sintered 421®

PTI Technologies’ Double Sintered media maintains the high porosity, low pressure drop, and extended on-stream life of our original soft sintered 421® media. In addition, double sintered media offers an increased resistance to media compression, which can occur at differential pressures that exceed 1000 psid across the filter elements. This media design provides the proven advantages of our soft sintered media with increased durability, resulting in the longest on-stream life, while still offering exceptional filtrate quality.

VS-grade 421®

PTI’s latest innovation in filtration media technology is this unique grade of double sintered media. VS-grade 421® offers all of the advantages of our double sintered media – resistance to media compression at high pressure, high porosity, and long on-stream life. Then, VS media goes a step further. Most depth medias capture a fairly high proportion of particles that are smaller than the media’s rated efficiency. For example, a 40-micron depth media will still capture many 20-micron particles. For many applications, this means that the filters load up sooner than they need to, since the small particles are not a threat downstream. VS media lets more of the smallest particles through, while maintaining their absolute-rated efficiency. This means the filter elements can last longer between changes, saving cost without adversely affecting the quality of filtrate.

Woven Wire Mesh

For those applications where depth media is not the right solution, PTI offers filter elements featuring a wide variety of woven wire mesh screens. These include square weaves, plain Dutch and Dutch twills, and unique weaves developed for optimum filtration performance.

Double Layer Media with High Dirt Holding Capacity

Standard Micron Rated Particle Elements with Integral Water Removal

PTI DryPak™ Elements are inexpensive, cost-effective units that provide moisture control within a standard Particle Control Element. Water contamination adversely affects oil by catalyzing oxidation and rapidly depleting water-sensitive additives. Reducing water in oil stabilizes viscosities, reduces corrosion, inhibits the generation of waxes and gels, and protects depletion of the oil additive package. DryPak™ Elements protect systems against moisture-related conditions in the new, high performance fluids while in many cases extending the filter change intervals of elements in the system.

High Collapse Replaceable Media Pack Elements

Interchange Elements

Replaceable Pleat Pack Filter Elements

Element Interchange Series for Pall 9600 & 9601

High and Low Pressure Filter Elements

Advanced Interchanges For Hilco/Kaydon Elements

Low Pressure Filters for Suction Applications

Medium Pressure Hydraulic Filter Assemblies

For Hydraulic and Lube Oil Applications

For Hydraulic and Lube Oil Applications

For Hydraulic and Lube Oil Applications

PTI provides high performance filtration products for high, medium and low pressure hydraulic applications as well as lubrication systems with inline, duplex, intank, inverse-T and spin-on filter assemblies.

Used to produce heat or pressure to ignite such items as safety fuses, propellants, powders, and thermal battery systems. NEco has designed, manufactured and tested a wide variety of controlled output igniters for aerospace, commercial and defense applications. NEco’s igniters are offered in low to high current ranges and in various all-fire and no-fire configurations; single or dual bridgewire designs are also available. All NEco igniters are designed and manufactured to provide optimum performance and reliability. NEco offers MIL DTL 23659E qualified igniters in both a single and dual bridgewire configuration.

NEco has designed, manufactured and tested a wide variety of controlled output igniters for military, aerospace and commercial applications. NEco igniters are offered in low to high current ranges and in various all-fire and no-fire configuration; single or dual bridgewire designs are also available. All igniters are designed and manufactured to provide optimum performance and reliability.

Gas and pressure cartridges are designed to generate a precisely controlled volume of gas output and provide energy for the activation of mechanical devices. The Ordnance Technology Division of NEco designs and manufactures a complete line of pyrotechnic gas generator and pressure cartridges to exacting customer and military specifications. With over four decades of experience, NEco is an established leader in the technological advancement of reliable pyrotechnic gas generators and pressure cartridges.

Piston Actuators are linear motion devices designed to perform mechanical work. They are available in various sizes, force outputs, and stroke capabilities. NEco’s miniature piston actuator line includes devices that can provide forces in excess of 250 lbs. with stroke lengths up to 0.270 inch.

These devices are available in various all-fire and no-fire configurations, including several that are qualified to the 1-Amp, 1-Watt requirements of MIL-STD-1512. Many are used in military and aerospace applications that demand the highest level of reliability. All devices are hermetically sealed and are offered in both standard and special configurations.

Retracting Actuators, also known as pin pullers, also produce a linear motion, but upon activitation, the piston retracts into the housing instantaneously. These devices are extremely light and compact requiring only a few volts to initiate and can complete their stroke within milliseconds.

Retracting Actuators can be used to prevent the linear or rotational motion of more massive objects but when activated, will allow the required motion. All of the devices are hermetically sealed and are offered in both standard and special configurations.

Developed and designed to generate a precisely controlled volume of gas output to provide activation energy for mechanical devices. NEco designs and manufactures a complete line of pyrotechnic gas generators and pressure cartridges to exacting customer and military specifications. NEco also manufacturers gas generators that require a time delay (Electronic Time Delays) before the activation energy is utilized when needed.

Developed with a unique locking feature that assures positive retention of the switched position. This ‘one-shot’ reliability is imperative in missiles, weapons, and aerospace applications where extreme conditions of shock, load, and vibration exist.

NEco’s squib switches are available in 2, 4, 6 and 8 pole configurations, with various make and break combinations. Each pole is rated for 10 amps continuous current and capable of much higher currents in pulsed applications.

Actuated by squibs of various sensitivities with ultra-fast or time-delayed characteristics, NEco switches out-perform large, environment-sensitive relays in critical areas such as weight saving, simultaneous switching of multi-high current circuits, and accuracy and stability under extreme environmental conditions.

NEco designs and manufacturers various Thermal Relays and Fuses in the configuration required by our customer. Known as a ‘one shot SPST’, NEco’s Thermal Relays and Fuses are hermetically sealed devices available in either the open or closed configuration. Our products operate over a wide temperature range with firing times as low as 2 milliseconds and switch rating from 1.5 to 25 amps. NEco’s Thermal Relays perform at a reliability rate of 99.9995%. The clear glass case allows visibility to determine the state of the switch/fuse.

Pyrotechnic cord cutters are designed to cut lanyards, cables, and cords. A popular version of this device simultaneously severs a Kevlar® Cable (rated at 750 lbs.) and two 24 AWG wires within 10 milliseconds of initiation.

Pyrotechnic cable cutters and wire cutters are designed to cut both solid and multiple stranded wire within 20 milliseconds of initiation. One variant of this device severs a solid 0.033” diameter stainless steel spring wire in less than 20 milliseconds.

Tube cutters are designed to open pressure diaphragms or to completely sever metal tubes of varying diameters and wall thicknesses, including those carrying pressurized fluids. The cutters are available with RFI protection in accordance with MIL-M-23700.

Give us a call today for all your pyro cutter needs including pyrotechnic cable cutters, cord cutters and pyrotechnic igniter cutters.
