Industrial Products

Features

• 350 psi (24 bar) operating pressure
• Element collapse ratings of 150 psid (10 bar)
• 50 & 70 gpm (189 & 265 lpm) nominal flow rates
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• Optional DryPak™ moisture control media
• SAE straight thread or NPT ports
• Visual indicator standard

Duplex Filter Assemblies
Medium Pressure Hydraulic Filter Assemblies

Features

• 2,400 psi (166 bar) operating pressure
• 40, 80 & 100 gpm (151, 303 & 379 lpm) nominal flow rates
• SAE -24 straight thread or SAE 4-bolt flange ports
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• Optional visual & electrical indicators
• Self locking transfer valve
• Automatic bleed-over valve

Duplex Filter Assemblies
Low Pressure Hydraulic Filter Assemblies

Features

• 350 psi (24 bar) operating pressure
• 40, 80 & 100 gpm (151, 303 & 379 lpm) nominal flow rates
• SAE -24 straight thread or SAE 4-bolt flange ports
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• Optional visual & electrical indicators
• Self locking transfer valve
• Automatic bleed-over valve

Duplex Filter Assemblies

Features

• 350 psi (24 bar) operating pressure
• 60 & 100 gpm (227 & 379 lpm) nominal flow rates
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• SAE Code 61 4-bolt flange ports
• Visual indicator
• Transfer valve and convenient bleed valve provides for smooth changeover

Suction Filter Assemblies
For Hydraulic and Lube Oil Applications

Features

• Element collapse rating 75 psid (5 bar)
• 50 gpm (189 lpm) nominal flow rate
• 3 psid bypass valve built into element
• Replaces CanFlo P/N CF 10-E

Features

• 350 psi (24 bar) operating pressure
• Element collapse rating of 75 psid (5 bar)
• 525 psi (36 bar) static burst pressure
• 30 & 40 gpm (114 & 151 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• NPT or SAE straight thread ports
• Optional visual indicator
• Interchangeable with Pall 7400/9540 elements

Spin-On Filter Assemblies
For Hydraulic and Lube Oil Applications

Features

• 200 psi (14 bar) operating pressure
• Element collapse rating of 75 psid (5 bar)
• Static burst pressure 300 psi (21 bar)
• 50 & 70 gpm (189 & 265 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional cellulose media
• NPT or SAE straight thread ports
• Optional visual indicator
• Interchangeable with competitive spin-ons

Spin-On Filter Assemblies
For Hydraulic and Lube Oil Applications

Features

• Operating pressure 200 psi (14 bar)
• Element collapse rating of 75 psid (5 bar)
• Static burst pressure 400 psi (28 bar)
• 30 & 40 gpm (114 & 151 lpm) nominal flow rates
• Elements available with cellulose media
• NPT or SAE straight thread ports
• Optional visual indicator
• Interchangeable with competitive spin-ons

For Hydraulic Applications

Features

• 200 psi (14 bar) operating pressure
• Element collapse rating of 75 psid (5 bar)
• 25, 70, 100 & 160 gpm (95, 265, 379 & 606 lpm) nominal flow rates
• SAE Straight thread ports or SAE flanges available
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media®
• Optional DryPak™ moisture control media
• Standard 50 psid (3.4 bar) bypass valve

For Hydraulic Applications

Features

• 150 psi (10 bar) operating pressure
• Element collapse rating of 75 psid (5 bar) & 150 psid (10 bar)
• 70, 100 & 150 gpm (265, 379 & 568 lpm) nominal flow rates
• NPT or SAE straight thread ports
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media®
• Optional visual & electrical indicators
• 3 & 25 psid bypass options available

High Pressure Hydraulic Filter Assemblies

Features

• Utilize PTI PG series elements sold separately
• 6,000 psi (414 bar) operating pressure
• 15, 30, 50, 80 & 120 gpm (57, 114, 189, 303 & 454 lpm) nominal flow rates
• Elements available with ß_x(c) ≥ 1000 Glas-Tech® media
• Valve options include – bypass & no bypass
• Optional visual & visual/electrical indicators sold separately

Features

• 400 psi (28 bar) operating pressure
• 15 gpm (57 lpm) nominal flow rate
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• 3/4″ NPT ports
• Optional 50 psid (3.4 bar) ±10% bypass valve

Inline Type Hydraulic Filter Assemblies
Low Pressure Hydraulic Filter Assemblies

Features

• 150 psi (10 bar) operating pressure
• 120 gpm (454 lpm) nominal flow rate
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• Optional DryPak™ moisture control media
• RePak® (Replaceable Pleat Pack) element
• NPT or ANSI flange ports
• Optional visual & electrical indicators

Inline Type Hydraulic Filter Assemblies
Low Pressure Hydraulic Filter Assemblies

Features

• 400 psi (28 bar) operating pressure
• 150 & 250 gpm (568 & 946 lpm) nominal flow rates
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• SAE 4-Bolt flange ports
• Optional visual & electrical indicators

Filter Assemblies
Low Pressure Hydraulic Filter Assemblies

Features

• 350 psi (24 bar) operating pressure
• 18, 35 & 50 gpm (68, 132 & 189 lpm) nominal flow rates
• SAE -20 straight thread ports
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• Optional visual & electrical indicators

L-Type Hydraulic Filters
Low Pressure Hydraulic & Lubrication System Return Line Filter Assemblies

Features

• 150 psi (10 bar) operating pressure
• 40 and 80 gpm (151 & 303 lpm) nominal flow rates
• Elements available with ßx(c) ≥ 1000 Glas-Tech® media
• 1¼” NPT Ports

L-Type Hydraulic Filter Assemblies
Hydraulic & Lubrication System Return-Line Filter Assemblies

Features

• 150 psi (10 bar) operating pressure
• 40 and 80 gpm (151 & 303 lpm) nominal flow rates
• Elements available with ßx(c) ≥ 1,000 Glas-Tech® media
• 1¼” NPT ports
• FHD series assembly designed for military style AN6236-3 elements

Medium Pressure Hydraulic Filter Assemblies

Features

• 2,000 psi (138 bar) operating pressure
• 25 gpm (95 lpm) nominal flow rate
• Elements available with ß_x(c) ≥ 1000 Glas-Tech® media
• SAE -16 straight thread ports
• Optional visual & visual/electrical indicators
• Utilize PTI F1L series elements

High Pressure Hydraulic Filter Assemblies

Features

• 6,000 psi (414 bar) operating pressure
• Element collapse ratings of 300 & 3000 psid (21 & 307 bar)
• 50, 80 & 120 gpm (189, 303 & 454 lpm) nominal flow rates
• SAE ports or SAE flanges
• Elements available with ß_x(c) ≥ 1000 Glas-Tech®  media
• Optional thermal lockout
• Valve options include – bypass, reverse flow & no bypass

High Pressure Hydraulic Filter Assemblies

Features

• 6,000 psi (414 bar) operating pressure
• Element collapse ratings of 300 & 3000 psid (21 & 207 bar)
• 15, 25 & 30 gpm (57, 95 & 114 lpm) nominal flow rates
• SAE -12 or SAE -16 ports
• Elements available with ß_x(c) ≥ 1000 Glas-Tech® media
• Optional thermal lockout
• Valve options include – bypass, reverse flow & no bypass

Features

• Fit PTI F1F, F1M, F2P, F1P, F7F & F7L filter assemblies
• Element collapse rating 300 psi (21 bar) or 3000 psi (207 bar)
• 15, 25 & 30 gpm (57, 95 & 114 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

Technical and ordering information, AN-6236 Style Filter Elements, 75 & 300 psid collapse

Technical and ordering information, AN-6235 Style Filter Elements, 150, 200, 300, 3000 & 4500 psid collapse

421 Soft Sintered 421^®

PTI Technologies metal filter elements begin with our proprietary 421-brand random fiber depth media. PTI’s 421 media is made from very small fibers, which are annealed and compressed to exacting specifications. The media is available in 316L stainless steel, and also other specialty alloys, such as Hastelloy R.

Because we make 421 ourselves, we don’t have to rely on “off-the-shelf” media to solve our customer’s problems. Instead, we are able to match our customer’s needs to very specific filtration solutions. Many times, we will create a custom media for a given customer application.

Double Layer Media with High Dirt Holding Capacity

Features

• PTI developed proprietary filter element media
• Multi-layer construction
• Double layer gradient media:
  • Improved efficiency – ßx(c)≥1000
  • Lower clean differential pressures
  • Higher dirt holding capacity
• Enhanced chemical compatibility
  • Offers a broader variety of applications
  • Includes water/glycol, phosphate esters, etc.
• Optional DryPak™ moisture control media
• Increased shelf life

Standard Micron Rated Particle Elements with Integral Water Removal

Features

• Long-Life PTI ßx(c) ≥ 1000 Glas-Tech® media
• Low cost ongoing moisture control
• No significant clean delta-p increase
• Minor delta-p increase with a water saturated element
• Extends element life
• Controls and reduces free water, emulsified water, and dissolved water while maintaining the ISO cleanliness of the system

High Collapse Replaceable Media Pack Elements

Features

• Collapse rating 200 psid (14 bar)
• Reusable center tube assembly
• 150 & 250 gpm (568 & 946 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

Interchange Elements

Features

• Element collapse rating 150 psid (10 bar)
• 150 & 250 gpm (568 & 946 lpm) nominal flow rates
• Elements available with Glas-Tech III ßx(c) ≥ 1000 proprietary media
• Optional DryPak™ moisture control media
• Easy lift handles
• Replacement for Pall 8304 & 8314 series filter elements

Replaceable Pleat Pack Filter Elements

Features

• Fit PTI F7G & F8G filter assemblies
• Upgrades PTI P83 and DP83 elements
• Reusable center tube assembly
• Element collapse rating 150 psid (10 bar)
• 150 & 250 gpm (568 & 946 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ Moisture control media

Features

• Fit PTI F1F, F1M, F2P, F1P, F7F & F7L filter assemblies
• Element collapse rating 300 psi (21 bar) or 3000 psi (207 bar)
• 50, 80 & 120 gpm (189, 303 & 454 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

Features

• Fits PTI F7G & F8G filter assemblies
• Element collapse rating 150 psid (10 bar)
• 100, 150 & 250 gpm (379, 568 & 946 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

Element Interchange Series for Pall 9600 & 9601

Features

• Replaces Pall Series 9600 & 9601 filter elements
• Element collapse rating 150 psid (10 bar) or 3000 psid (207 bar)
• 15, 30, 50 & 60 gpm (57, 114, 189 & 227 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

High and Low Pressure Filter Elements

Features

• Element Collapse Rating 200 psi (14 bar) or 3000 psi (207 bar)
• 10 & 20 gpm (38 & 76 lpm) Nominal Flow Rates
• Elements Available with ßx(c) ≥ 1000 Glas-Tech® Media
• Optional DryPak™ Moisture Control Media
• Replacement Element For Pall 9020 and 9021 Filter Assemblies

Advanced Interchanges For Hilco/Kaydon Elements

Features

• Replaces Hilco, Kaydon, Refilco and other 6×18 & 6×36 size filter elements
• Element collapse rating 100 psid (7 bar)
• 100, 150, 200 & 250 gpm (379, 568, 757 & 946 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

Low Pressure Filters for Suction Applications

Features

• Element collapse rating 75 psid (5 bar)
• 50 gpm (189 lpm) nominal flow rate
• 3 psid Bypass valve built into element
• Replaces CanFlo P/N CF 10-E

Medium Pressure Hydraulic Filter Assemblies

Features

• 350 psi (24 bar) operating pressure
• Element collapse rating of 75 psid (5 bar)
• 525 psi (36 bar) static burst pressure
• 30 & 40 gpm (114 & 151 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Interchangeable with Pall 7400/9540 elements

For Hydraulic and Lube Oil Applications

Features

• 200 psi (14 bar) operating pressure
• Element collapse rating of 75 psid (5 bar)
• Static burst pressure 300 psi (21 bar)
• 50 & 70 gpm (189 & 265 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional cellulose media
• NPT or SAE straight thread ports
• Optional visual indicator
• Interchangeable with competitive spin-ons

For Hydraulic and Lube Oil Applications

Features

• Operating pressure 200 psi (14 bar)
• Element collapse rating of 75 psid (5 bar)
• Static burst pressure 400 psi (28 bar)
• 30 & 40 gpm (114 & 151 lpm) nominal flow rates
• Elements available with cellulose media
• NPT or SAE straight thread ports
• Optional visual indicator
• Interchangeable with competitive spin-ons

Features

• Fit PTI F7G & F8G filter assemblies
• Element collapse rating 150 psid (10 bar)
• 150 & 250 gpm (568 & 946 lpm) nominal flow rates
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

For Hydraulic and Lube Oil Applications

Features

• Fits PTI RePak™ 50/70 (FSF) series filter assemblies
• Reusable steel center tube assembly
• Element collapse rating 150 psid (10 bar)
• 50 & 70 gpm (189 & 265 lpm) nominal flow rate
• Elements available with Glas-Tech® ßx(c) ≥ 1000 media
• Optional DryPak™ moisture control media

Drawing on our longstanding experience in the design, and production of metal fiber media filter elements, PTI has led development of improved hydraulic system filter elements for the US Army. Early tests have shown a significant improvement in system cleanliness, on stream life and resistance to cyclic flow contaminant migration.

PTI Technologies’ random fiber filter media is the highest performance media on the market today. PTI’s 421® Metal Fiber Media element design extends the life of components and reduces annual maintenance cost, thereby providing a higher level of operational reliability and improved safety.

Platform

• AH-64 Apache
  P/N 7595726-101
• H-60 Black Hawk
  P/N 7596335-101
• Aviation Ground Power Unit (AGPU)
  P/N 7600570-101

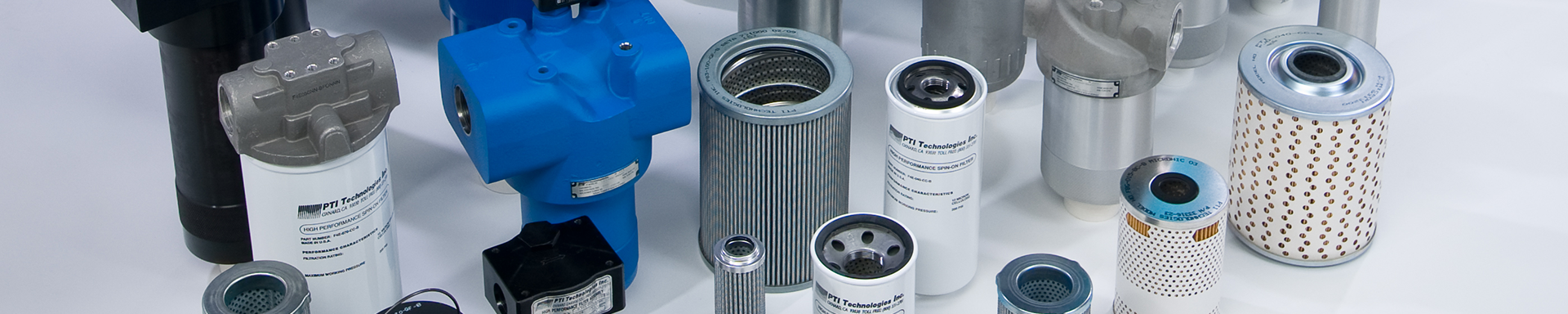

PTI provides high performance filtration products for high, medium and low pressure hydraulic applications as well as lubrication systems with inline, duplex, intank, inverse-T and spin-on filter assemblies.
