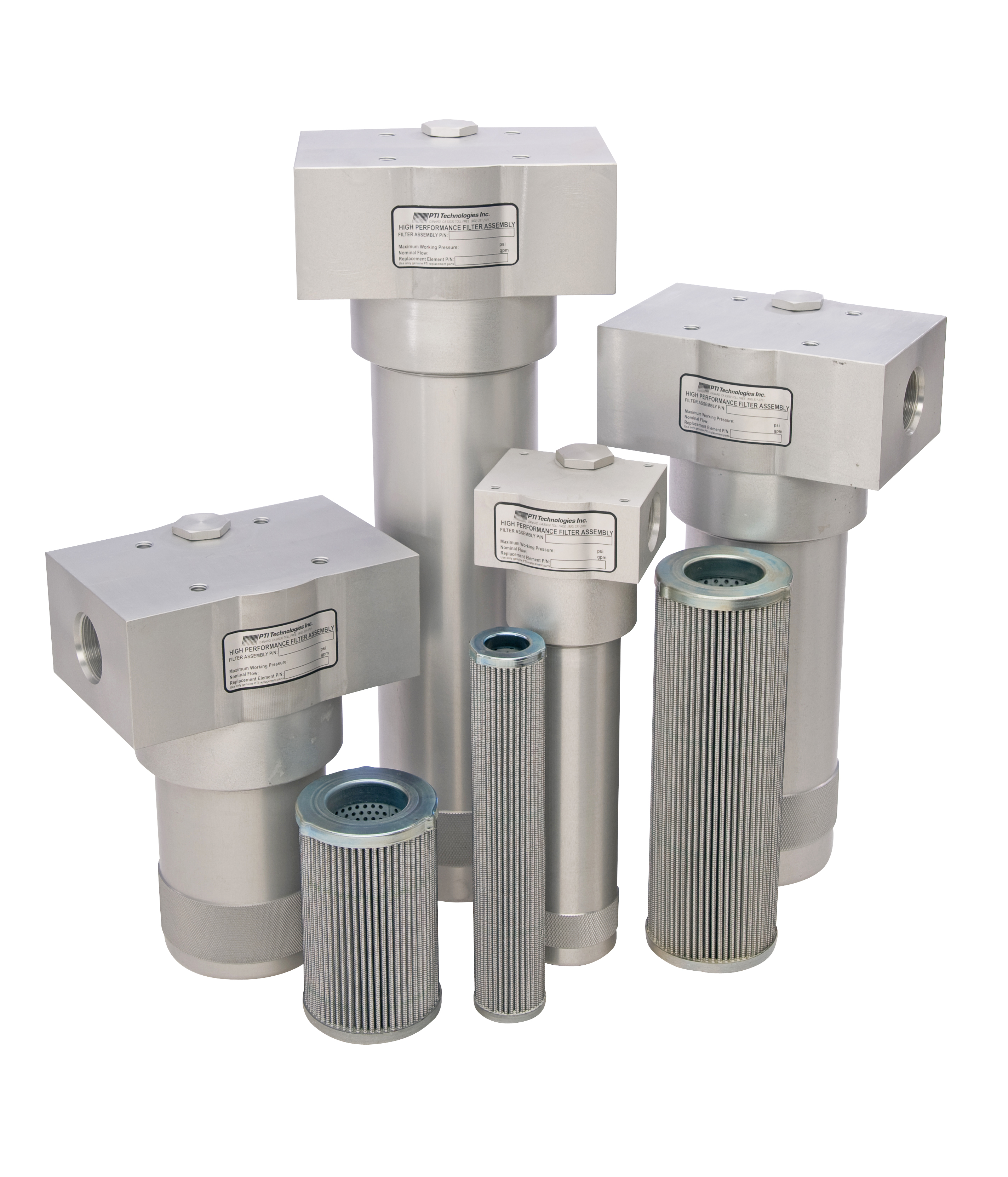

F1M 015-120 Series
Medium Pressure Hydraulic Filter Assemblies
Features
- 3,000 psi (207 bar) operating pressure
- 15, 30, 50, 80 & 120 gpm (57, 114, 189, 303 & 454 lpm) nominal flow rates
- Elements available with ßx(c) ≥ 1000 Glas-Tech® media
- Optional 100 psid (6.9 bar) bypass valve
- Optional visual & visual/electrical indicators
- Utilize PTI PG series elements sold separately
Categories:
Sub-Categories:
Technical Data:
| Pressure & Temperature Rating | |
| Operating Pressure: | 3,000 psi (207 bar) |
| Proof Pressure: | 4,500 psi (310 bar) |
| Burst Pressure: | 7,500 psi (517 bar) |
| Operating Temperature: | -40°F to +250°F (-40°C to +121°C) |
| Materials of Construction | |
| Head: | Aluminum |
| Bowl: | Aluminum |
| Bypass Valve | |
| Bypass Valve Setting: | 100 psid (6.9 bar) ±10% |
| Integrated Into Housing | |
| Differential Pressure Indicators | |
| Visual Indicator: | 75 psid (5.2 bar) ±10% activation, manual reset |
| Visual Electrical Indicator: | 75 psid (5.2 bar) ±10% activation |
| Contacts - SPDT NO or NC, DIN Connector | |
| Seal Material: | Buna |
Product PDF:
PTI F1M Series Medium Pressure Filter Assy.pdf
Filter Model:
F1M 015-120 Medium P
Maximum Flow Rate GPM:
120
